How to Eliminate Tool Deflection in Deep Cavity Machining

Are you struggling with tool deflection, chatter, and poor surface finish when machining deep cavities? You're not alone. Over 73% of CNC machinists report tool deflection as their biggest challenge when working on aerospace components, automotive engine blocks, and complex molds.

This comprehensive guide shows you exactly how to solve deep cavity machining problems and achieve precision results every time.

The Hidden Costs of Tool Deflection in Deep Cavity Work

Tool deflection doesn't just affect surface finish—it's costing your shop thousands $ in:

• Scrapped parts: Up to 15% rejection rates on deep cavity components
• Extended cycle times: 40-60% longer machining times due to conservative feeds/speeds
• Tool breakage: Premature tool failure from excessive vibration
• Rework costs: Secondary operations to fix poor finishes

Sound familiar? Keep reading for proven solutions.

Why Traditional Long-Reach Tools Fail?

Standard extended tool holders create a perfect storm of problems:

1. Excessive Length-to-Diameter Ratios

• Traditional extensions often exceed 8:1 L/D ratios
• Results in uncontrollable deflection beyond 200mm reach
• Vibration amplifies exponentially with length

2. Limited Rigidity Options

• Fixed-length tools force compromises
• Can't optimize stiffness for specific applications
• One-size-fits-all approach fails for complex geometries

3. Poor Damping Characteristics

• Solid extensions transmit all cutting forces
• No vibration absorption capability
• Chatter becomes inevitable in deeper cuts

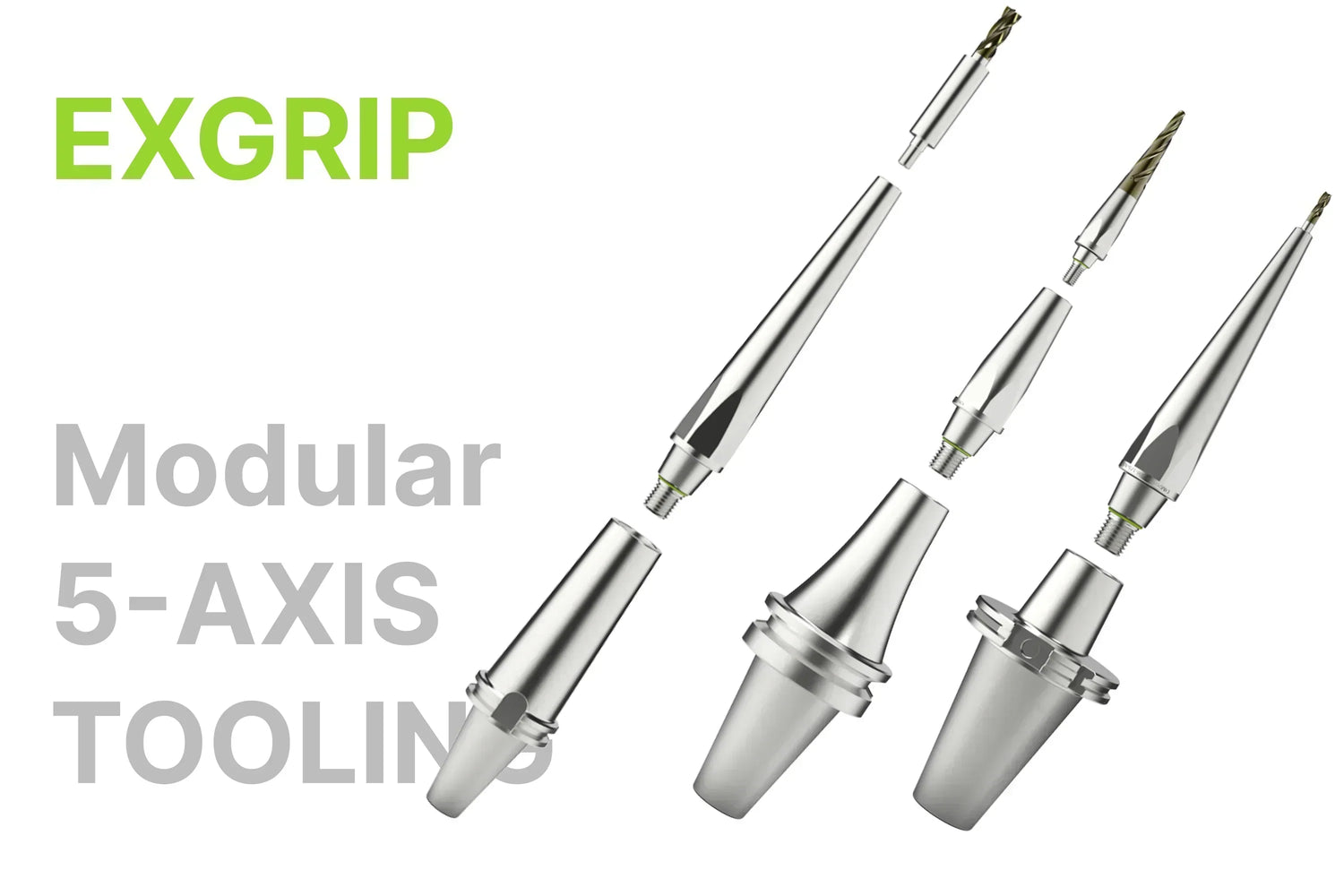

The Modular Solution: EXGRIP 5-Axis Long-Reach Systems

Modern modular tool systems solve deflection problems through engineered flexibility:

• Optimized Length Configuration
  • Build exact reach needed (no excess overhang)
  • Minimize L/D ratios while maintaining accessibility
  • Custom combinations for each application
• Enhanced Rigidity Design
  • Curved body profiles distribute cutting forces
  • Larger diameter extensions where possible
  • Strategic mass distribution for vibration damping
• Precision Clamping Technology
  • Shrink-fit connections eliminate tool pullout
  • Zero runout at extended lengths
  • Maintains accuracy beyond 600mm reach


Industry-Specific Applications

Aerospace Deep Cavity Machining

• Challenge:
  • Turbine blade cooling channels, structural components with ±0.001" tolerances
• Solution:
  • Tapered ball nose configurations for complex 3D surfaces
  • Extended reach up to 400mm without deflection
  • Surface finishes under 8 Ra consistently achieved

Automotive Engine Block Manufacturing

• Challenge:
  • Deep cylinder bores, oil galleries, complex internal geometries
• Solution:
  • Modular extensions adapt to various bore depths
  • Replaceable tip technology reduces tool inventory
  • 45% faster cycle times vs. traditional methods

Mold & Die Deep Pocket Machining

• Challenge:
  • Injection mold cavities, die details, steep wall angles
• Solution:
  • Universal shrink-fit adapters work with existing end mills
  • 3-piece configurations reach impossible geometries
  • Eliminates EDM for many applications


Calculating Your ROI

• Before Modular Systems:
  • Setup time: 45 minutes per tool change
  • Cycle time: 3.2 hours typical part
  • Scrap rate: 12% due to deflection issues
  • Tool life: 2.5 hours average
• After Implementations:
  • Setup time: 8 minutes (quick-change modular)
  • Cycle time: 1.8 hours (higher feeds/speeds possible)
  • Scrap rate: 1.5% (consistent precision)
  • Tool life: 4.2 hours (reduced breakage)
• Result: 156% ROI within 6 months for typical job shops.


Technical Selection Criteria

1. Calculate Required Reach
   • Measure deepest cavity dimension
   • Add 25mm clearance minimum
   • Consider 5-axis angular requirements
2. Assess Rigidity Requirements
   • Material hardness (HRC)
   • Required surface finish (Ra)
   • Tolerance specifications
3. Evaluate Spindle Compatibility
   • CAT40/50, HSK-A63/100, SK40/50, BT40/50
   • Maximum spindle speed limitations
   • Coolant delivery requirements

Pro Tip: Start with Universal Systems

Universal shrink-fit extensions offer maximum flexibility for shops handling varied work. You can adapt any straight-shank end mill instantly.

Implementation Best Practices

• Phase 1: Assessment (Week 1)

• • Audit current deep cavity challenges
  • Identify highest-impact applications
  • Calculate potential ROI

• Phase 2: Pilot Program (Weeks 2-4)

• • Start with one critical part family
  • Test 2-3 modular configurations
  • Document cycle time improvements

• Phase 3: Full Implementation (Month 2)

• • Expand to all deep cavity applications
  • Train operators on quick-change procedures
  • Establish tool management protocols

Troubleshooting Common Deep Cavity Issues

• Problem: Still Getting Chatter with Extended Tools
  • Solution: Reduce stepover to 20% of tool diameter, increase spindle speed 15%
• Problem: Poor Surface Finish in Deep Pockets
  • Solution: Switch to tapered ball nose design, optimize coolant delivery angle
• Problem: Tool Breakage at Extension Joint
  • Solution: Verify proper shrink-fit temperatures, check for coolant contamination


Ready to Eliminate Tool Deflection?

Deep cavity machining doesn't have to be a compromise between reach and precision. Modular 5-axis tool systems give you both.

Next Steps:

1. Calculate your current deflection costs using our ROI calculator
2. Design your optimal configuration with our selection tool
3. Request sample parts to verify performance claims

The question isn't whether you can afford to upgrade—it's whether you can afford not to!
