How to effectively control tool depth?

Why Your Shrink-Fit Tools Never End Up at the Same Length?

You've done everything right.

The shrink-fit holder is heated correctly. The end mill is clean. The setup sheet clearly specifies the required projection length.

Yet after a tool change, the cutter somehow ends up slightly longer—or shorter—than the previous assembly.

Maybe it's only a few hundredths of a millimeter. Maybe it's enough to force another trip to the presetter. Either way, those small inconsistencies add up to wasted setup time, unnecessary offset adjustments, and increased risk on the machine.

For many CNC shops, achieving consistent tool length during shrink fitting is much harder than it sounds.

The Hidden Challenge of Shrink-Fit Tool Assembly

Shrink-fit holders are known for excellent runout accuracy, superior gripping force, and outstanding balance at high spindle speeds.

Unlike collet chucks or side-lock holders, shrink-fit tooling relies on thermal expansion. The holder is heated, the bore expands, the cutting tool is inserted, and as the holder cools, it shrinks tightly around the tool shank.

Sounds simple enough.

However, during those few seconds when the holder is expanded, the operator must position the tool at exactly the correct depth. Without a physical reference point, this often becomes a process of estimation, measuring, and hoping the tool doesn't shift during cooling.

Common problems include:

• Inconsistent tool projection between operators
• Replacement tools installed at slightly different lengths
• Extra time spent re-measuring and presetting tools
• Reduced rigidity from incorrect insertion depth
• Potential crashes caused by excessive tool overhang

Even experienced machinists encounter these issues, especially in production environments where multiple operators handle tooling assemblies.

A Simple Solution Most Shops Overlook

This is where a Tool Clamping Clip becomes invaluable.

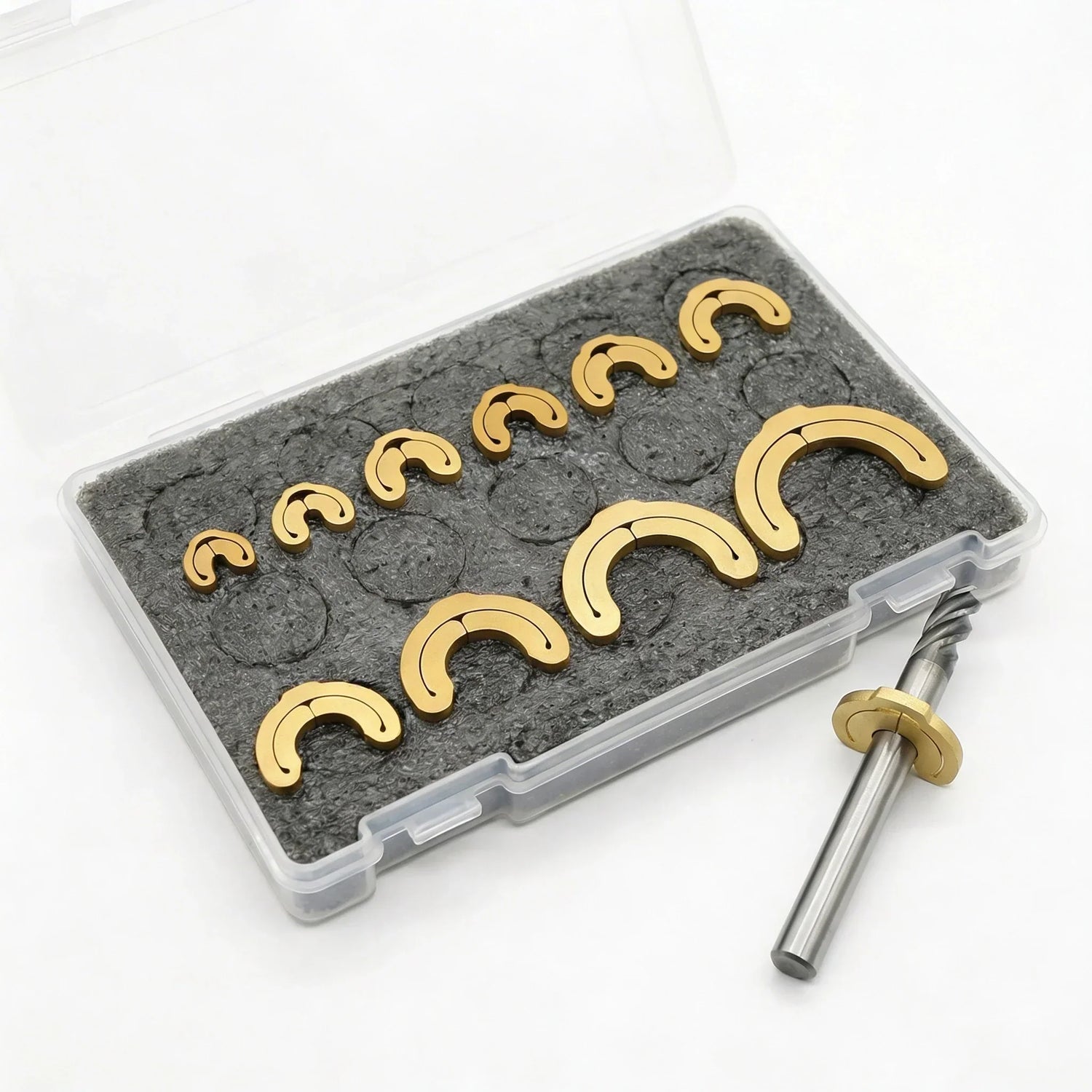

The Tool Clamping Clip is a precision ring designed to fit a specific tool shank diameter. Once installed on the tool, it acts as a physical stop during the shrink-fit process.

Instead of estimating how far the tool should be inserted, the operator simply pushes the tool into the heated holder until the clip contacts the face of the holder.

The result is instant, repeatable positioning every time.

No guessing. No visual estimation. No unnecessary measuring.

Just consistent tool projection from one assembly to the next.

Why Manual Measurement Isn't Always Reliable

Many machinists assume they can simply measure the tool length before or after shrink fitting.

While measurement tools are important, they don't solve the problem during assembly.

When the holder is heated and the bore expands, there is very little tactile feedback. The operator often cannot feel the exact insertion depth. Small hand movements can easily change the final projection length by several hundredths of a millimeter.

During production, those small variations can create unnecessary offset changes and increase setup time.

The Tool Clamping Clip removes that uncertainty by creating a positive mechanical stop.

Instead of asking, "Is the tool at the correct depth?" the process becomes:

Insert the tool until the clip contacts the holder face.

That's a much more repeatable process.

How to Use a Tool Clamping Clip

1. Select the Tool Clamping Clip that matches the shank diameter of your cutting tool.
2. Slide the clip onto the tool shank.
3. Position the clip at the required projection length.
4. Heat the shrink-fit holder according to the manufacturer's recommendation.
5. Insert the tool into the expanded holder until the clip contacts the holder face.
6. Allow the assembly to cool completely.
7. Remove the clip or leave it installed for future tool changes.

The entire process takes only a few seconds but dramatically improves repeatability.

The Real Benefits on the Shop Floor

At first glance, a Tool Clamping Clip might seem like a small accessory.

In reality, it solves one of the most common causes of variation in shrink-fit tooling assemblies.

Shops that standardize tool depth control often see:

• Consistent tool projection after every tool change
• Reduced setup and presetting time
• Fewer offset adjustments at the machine
• Improved machining repeatability
• Less risk of improper tool insertion
• Greater confidence when replacing worn tools

When dozens or even hundreds of shrink-fit tools are assembled every month, those time savings quickly add up.

Small Accessory. Big Impact.

Shrink-fit tooling delivers exceptional precision, but achieving that precision requires consistent tool assembly practices.

A Tool Clamping Clip provides one of the simplest and most effective ways to ensure every tool is installed at exactly the same depth, every time.

For machine shops looking to reduce setup time, improve repeatability, and eliminate guesswork during shrink fitting, this small accessory can make a surprisingly large difference.
