F15i Pro Low-Temp Water-Cooled Shrink Fit Machine
High-Output Shrink Fit
Model: F15i Pro

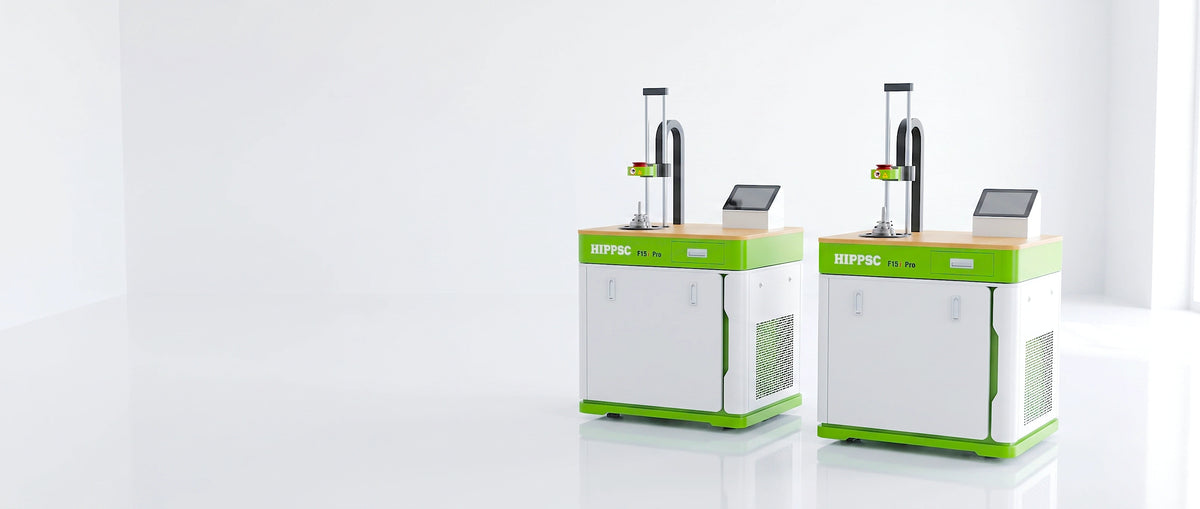

F15i Pro Low-Temp Water-Cooled Shrink Fit Machine
Intelligent Shrink Fit Tool Holder Heating Device Core functions: Shrink Fit Tool Holder Heating, Tool Assembly/Disassembly, Intelligent Temp Control, Scan-to-Identify One-Touch Heating.
15KW
Rated Power
5C
Temperature Control Accuracy
15s
Cooldown, 300C to Ambient
3 Coils
K1535H, K1555, K1568
Basic Information
Product NameF15i Pro Low-Temp Water-Cooled Shrink Fit Machine
Product ModelF15i Pro
Product PositioningIntelligent Shrink Fit Tool Holder Heating Device
Core FunctionsShrink Fit Tool Holder Heating, Tool Assembly/Disassembly, Intelligent Temp Control, Scan-to-Identify One-Touch Heating
Applicable IndustriesCNC Machining, Mold Manufacturing, Precision Machinery, Aerospace, Automotive Parts Machining, etc.

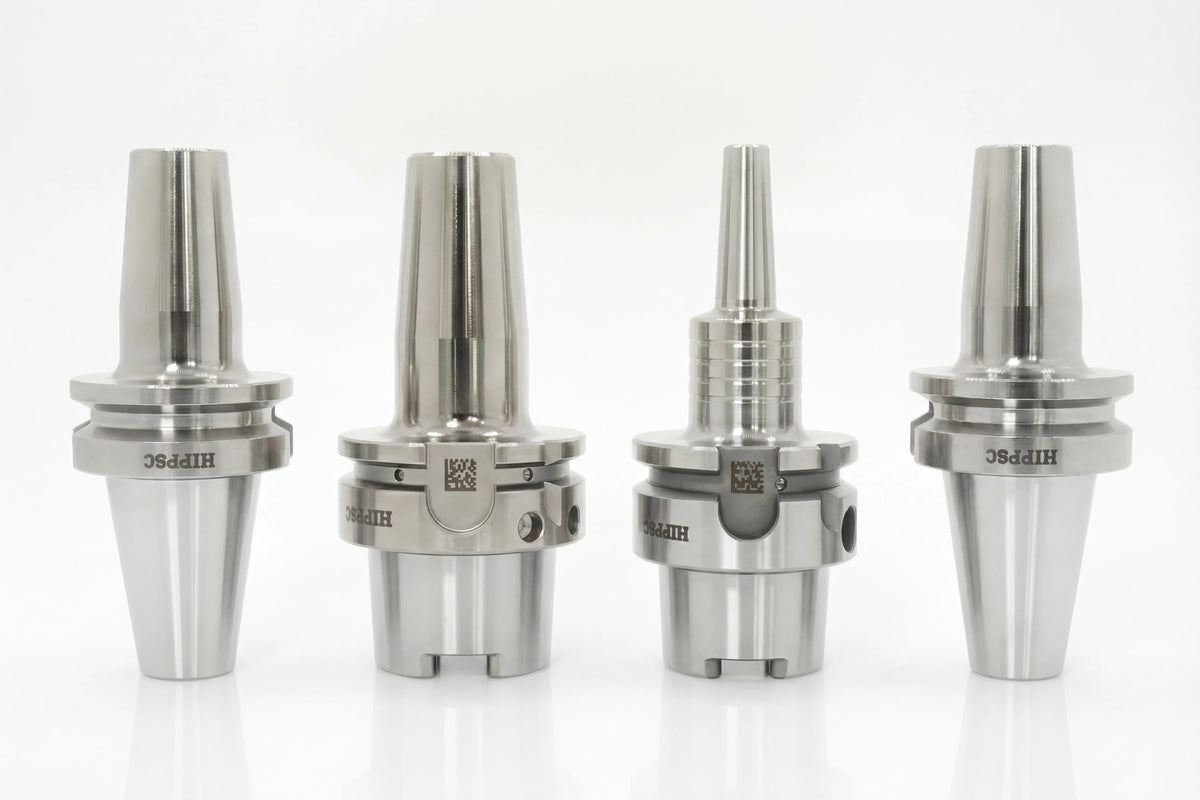

Compatible Tool Holder TypesISO, BT, BBT, HSK, CAT, SK
Dimensions & Weight
Main Unit Dimensions (L×W×H)950×710×1650mm
Packaging Dimensions (L×W×H)1100×860×1800mm
Equipment Net Weight165KG
Equipment Gross Weight (Including Packaging)219KG
Equipment Footprint950×710mm
Heating Coil Maximum Stroke500mm
Cooling Panel Maximum Stroke300mm
Core Performance Parameters
Rated Power15KW
Rated Voltage380V
Rated Frequency50/60Hz
Maximum Input Current23A
Input Air Supply Requirement0.6-0.8 MPa (Dry Filtered, Water & Dust Free)
Heating MethodElectromagnetic Induction Heating
Coil Cooling MethodAir Cooling
Tool Holder Cooling MethodCirculating Water Cooling
Temperature Control Accuracy±5℃
Coil Intelligent Temperature Control FunctionYes
Heating System Core Parameters
| Parameter | K1535H Power | K1555 Power | K1568 Power |
|---|---|---|---|
| Coil Inner Diameter | 35mm | 55mm | 68mm |
| Maximum Shrink Fit Outer Diameter | 30mm | 50mm | 62mm |
| Coil Height | 42mm | 62mm | 62mm |
| Coil Effective Heating Thickness | 32mm | 52mm | 52mm |
| Parameter | 3-12mm | 12-32mm | 25-32mm |
|---|---|---|---|
| Alloy Steel Heating Time | 3-6s | 4-8s | 8-10s |
| Stainless Steel Heating Time | 6-14s | 18-28s | 40-60s |
Heat Shield Ring☑
Coil Replacement MethodQuick Change
Intelligent Induction SwitchingYes
Coil Positioning AccuracyPhysical Contact
Compatible Heat Shield Ring SpecificationsHG35SR0306/HG35SR0812/HG55SR1216/HG55SR1825/HG55SR2532/G68SRC2532
Electrical System Parameters
Power TypeThree-Phase AC
Allowable Voltage Fluctuation RangeAC380V±10%
Insulation ClassClass F
Protection RatingIP54
Grounding RequirementReliable grounding required, grounding resistance ≤1Ω
Overcurrent ProtectionSupported
Overvoltage ProtectionSupported
Overtemperature ProtectionSupported
Short Circuit ProtectionSupported
Cooling System Parameters
Tool Holder Cooling MethodCirculating Water Cooling
Cooling Stroke0~300mm
Cooling Time10-60s
Cooling EfficiencyTool holder cools from 300°C to ambient ≤15s
Air Supply Filtration RequirementThree-Stage Filtration, Water-Free, Dust-Free, Oil-Free
Function Configuration
Core Function 1Scan Recognition
Core Function 2One-Touch Heating

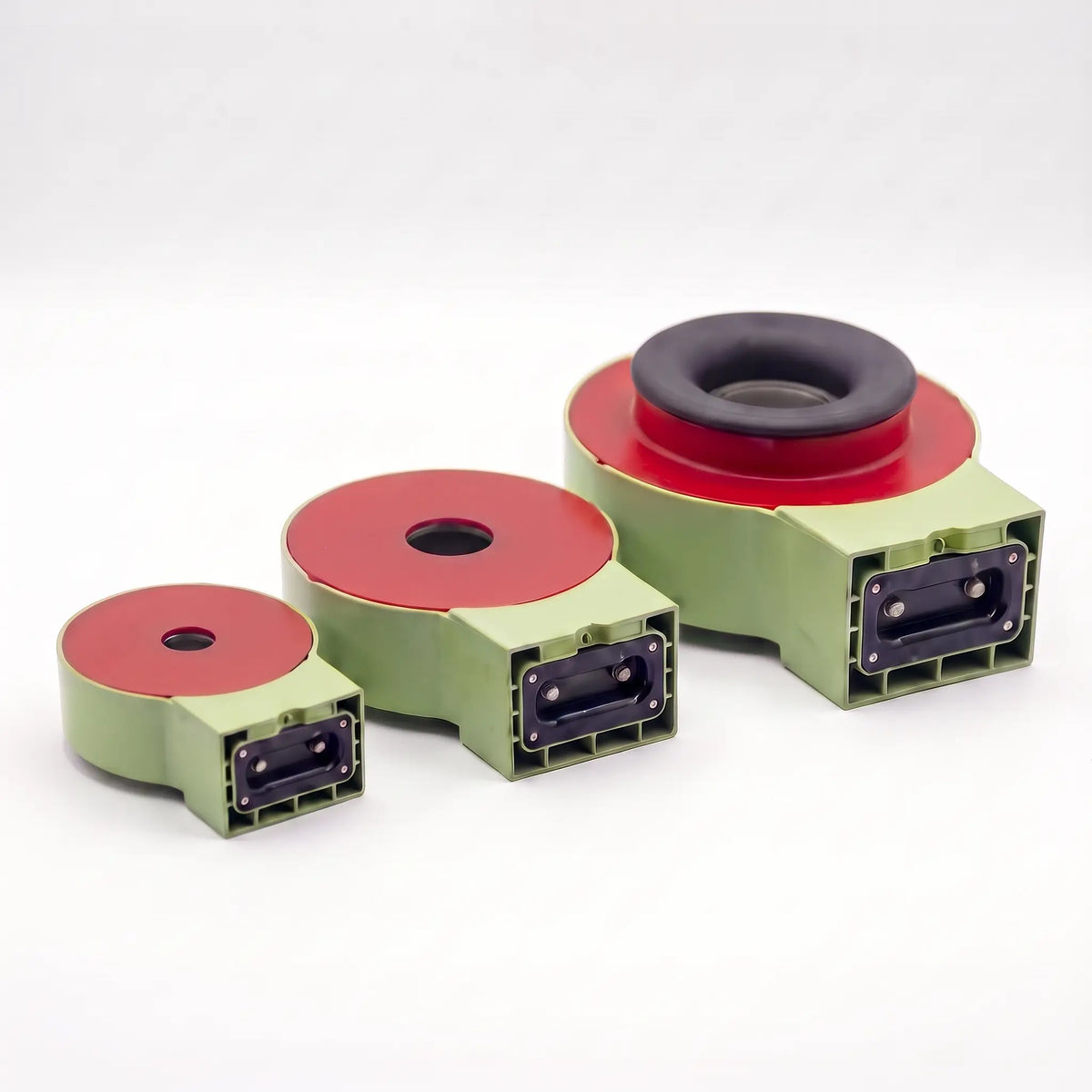

Core Function 3Quick-Change Coil
Core Function 4Intelligent Induction Switching System
Core Function 5Heats Both Stainless Steel and Alloy Steel
Core Function 6Automatic Coil Model Recognition
Core Function 7Precision Temperature Control
Core Function 8Coil Overtemperature Warning
Core Function 9Overtemperature Automatic Protection
Core Function 10Built-in Parameter Library
Core Function 11Supports Multi-Spec Tool Holder Parameter Presets
Core Function 12Manual/Auto Dual Mode Switching
Core Function 13Supports Custom Heating Parameters
Core Function 14Real-Time Heating Process Monitoring
Core Function 15Fault Self-Diagnosis
Core Function 16Real-Time Fault Code Display
Core Function 17Tool Assembly/Disassembly Assist Function
Core Function 18Supports Both Shrink Fit and Shrink Removal Modes

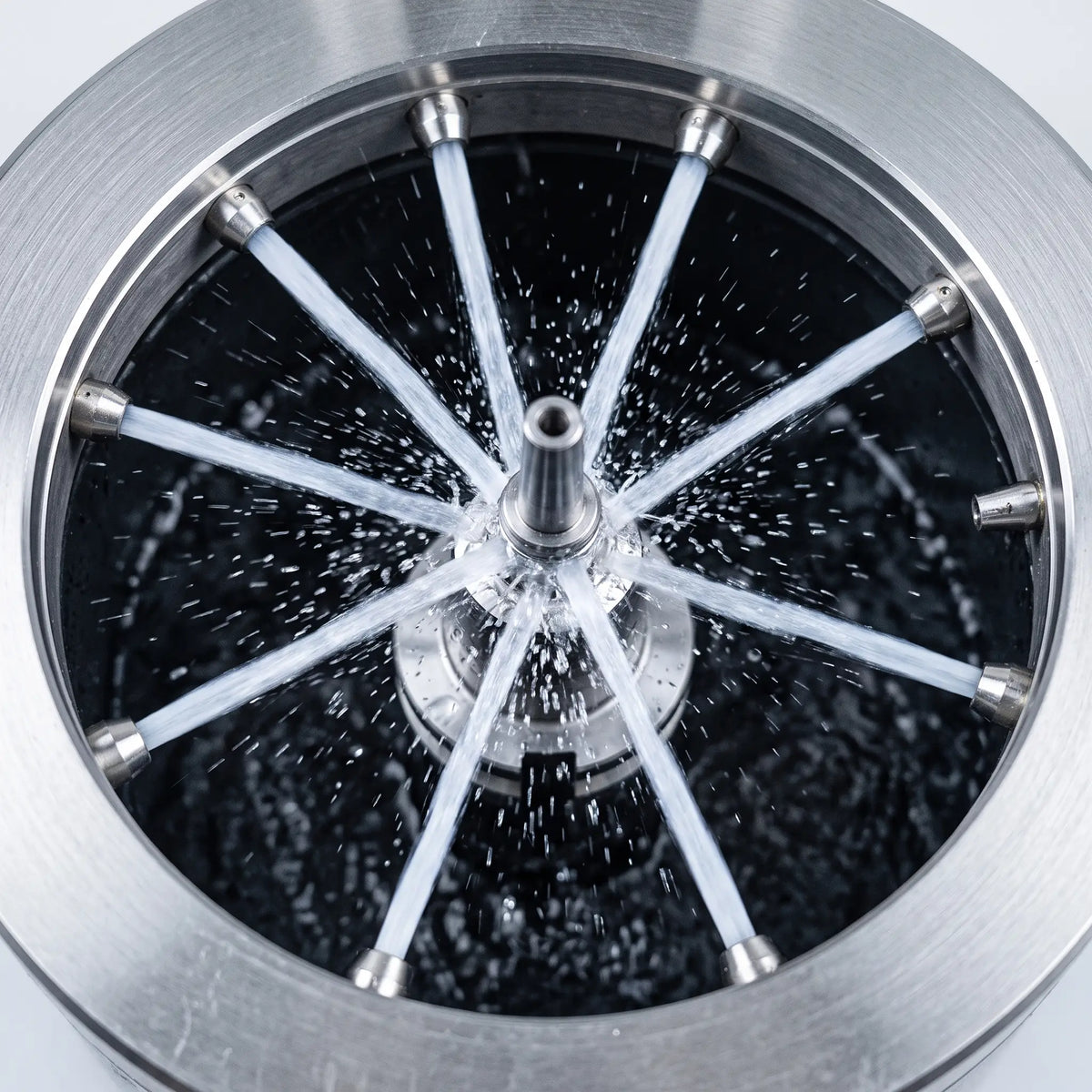

Core Function 19Circulating water cooling greatly accelerates cooling, reducing time by 75% compared to air cooling
Safety Protection Configuration
Overtemperature ProtectionYes
Overcurrent/Short Circuit ProtectionYes
Leakage ProtectionYes
Air Supply Abnormality ProtectionNo
Coil Abnormality ProtectionYes
Over-Travel ProtectionPneumatic Control Movement, with Physical Stop Hard Limit
Emergency Stop ButtonYes
Safety Warning LabelsYes
Insulation ProtectionYes
Human-Machine Interaction System
Display Specification10-inch
Display Resolution1024×600
Operation MethodTouch Screen
Language SupportChinese & English Standard, Korean/Japanese/Russian (Custom Order)
Parameter SettingsYes
Data DisplayYes
Fault PromptYes
Operation GuideNo
Accessories & Optional Systems
Standard Accessory 1Product Manual, Warranty Card
Standard Accessory 2Shrink Fit Machine Certificate of Conformity
Standard Accessory 3Password Letter
Standard Accessory 4Operation Video QR Code
Standard Accessory 5HGSR0812*1
Standard Accessory 6 - Coolant1L*2
Optional Accessory - Quick-Change CoilK620, K655 Power
Optional Accessory - Handheld Barcode ScannerQR-LHV01
Optional Accessory - Retaining RingHP-K3, HP-K4, HP-K5, etc.
Optional Accessory - Tool Removal PliersHP-LH7-N
Optional Accessory - Air FilterAF300
Optional Accessory - Heat-Resistant GlovesHP-GT-N
Optional Accessory - Heat Shield RingHG55SR1825
Optional Accessory - Adapter SleeveFull Series Models: SH-BT30/SH-BT40/SH-HSK25, etc.
Optional Accessory - Carbon Deposit Removal PasteQDS-100G
Optional Accessory - Carbon Deposit CleanerHJT-2.9/10
Optional Accessory - Bore Cleaning BrushHP-S3, HP-S4, HP-S5, HP-S6, HP-S8, HP-S10, HP-S12
After-Sales Support Services
Full Machine Warranty Term1 year (non-human-induced damage)
Technical Support7×24 Online Technical Support, Remote Troubleshooting Guidance
On-Site ServiceNationwide on-site installation, debugging & repair service available (except remote areas)
Accessories SupplyLifetime supply of original factory accessories, shipped within 48 hours
Training ServiceFree equipment operation & maintenance training
Software UpgradeLifetime Free Equipment Control System Software Upgrade
Maintenance Requirements
Daily MaintenanceClean Body & Heating Coil After Daily Use, Check Air Supply Lines for Leaks
Weekly MaintenanceClean Air Filter Element Weekly, Check Electrical Connections for Looseness
Monthly MaintenanceCheck Heating Coil Insulation Monthly, Calibrate Temperature Sensor, Lubricate Moving Parts
Quarterly MaintenanceComprehensive Quarterly Check of Electrical, Cooling & Mechanical Transmission System Performance
Annual MaintenanceAnnual Return-to-Factory or On-Site Comprehensive Inspection, Replace Aged Seals, Cables and Other Wear Parts
Storage RequirementsStore in Dry, Ventilated, Corrosive-Gas-Free Environment, Temp -10°C~40°C, RH ≤85%
Transportation RequirementsUse Original Packaging During Transport, Avoid Severe Impact, Inversion, Rain Exposure
Operating Environment RequirementsOperating Temp 5°C~40°C, RH ≤80%, No Dust, No Corrosive Gas, No Strong Electromagnetic Interference
Machine Safety Requirements & Compliance
CE Safety CertificationNo
3C Safety CertificationNo
FCC Safety CertificationNo
EAL Safety CertificationNo
UKCA Safety CertificationNo
PSE Safety CertificationNo
KC Safety CertificationNo
Mechanical ProtectionMeets
Mechanical StructureMeets
Leveling FeetMeets
Movable GuardMeets
Observation WindowNot Applicable
Emergency Stop ButtonMeets
Control CircuitMeets
Interlock DeviceNot Applicable
Safety Light CurtainNot Applicable
Safety Device LinkageNot Applicable
Two-Hand StartNot Applicable
Lockout/Tagout (LOTO)Not Applicable
Lockout/Tagout (LOTO)Not Applicable
Mechanical StructureMeets
Electrical Control StructureMeets
Circuit BreakerMeets
Power CableMeets
Residual Voltage ProtectionMeets
WiringMeets
Cooling FanMeets
Grounding RequirementMeets
Software LogicMeets
Safety LabelingMeets
Environmental RequirementsMeets
Electrical InspectionMeets
Equipment NameplateMeets
Report Material ProvisionNot Met
Automatic Shut-Off ValveNot Applicable
Pipeline ConnectionMeets
Liquid Level SettingNot Applicable
Installation PositionMeets
Liquid Level Alarm LinkageNot Met
Leak-Proof TrayNot Met
Liquid CollectionNot Met
Leak DetectionNot Met
Safety Notice / LabelingMeets
Inspection ReportNot Met
Heating CutoffMeets
Dual Overtemperature Protection ProbesNot Met
Overtemperature Probe Installation PositionMeets
Dual Time ControlNot Met
Circuit LogicMeets
Overtemperature Protection SettingMeets
Circulating Air HeatingNot Applicable
Environmental RequirementsMeets
Cooling SystemMeets
Cooling System
(Standard Reference: GB/T 5959.3)Meets
Occupational HealthMeets
Electrical Control StructureMeets
Safety NoticeMeets
Electrical Control RequirementsMeets
Mechanical StructureMeets
Induction CoilMeets
