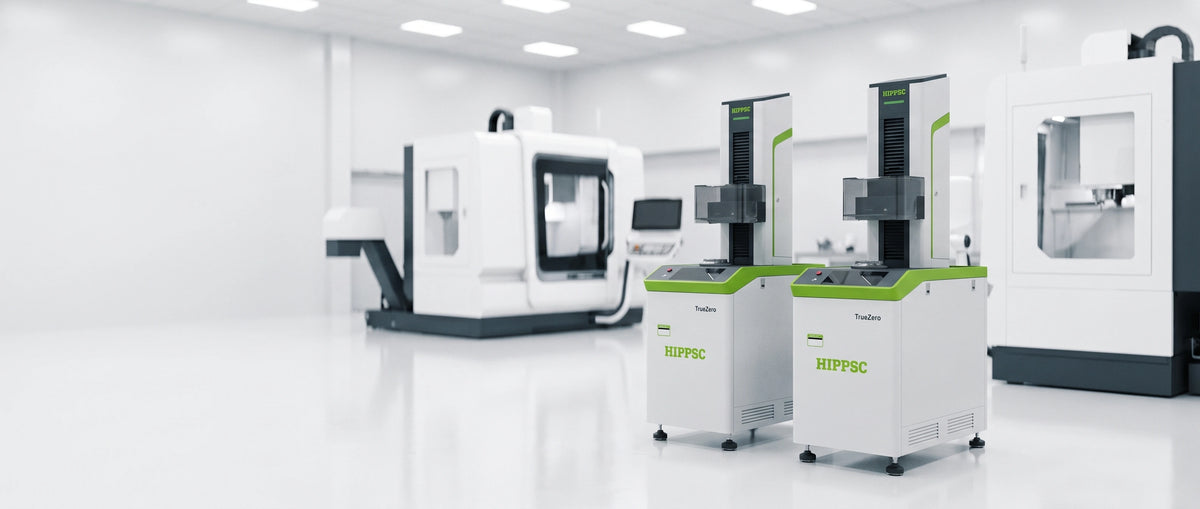

TrueZero High-Precision Off-Machine Laser Tool Presetter

0.1um

0.15mm

30s/pc

9 Models

Precision Tool Inspection Device, HIPPSC Tool Automation Ecosystem Member, Off-Machine Tool Presetting & Inspection Unit for Workshop

Automatic Measurement & Presetting of Tool Length, Diameter, Concentricity, Edge Runout, R-Angle

High-Precision Off-Machine Laser Tool Presetter

TrueZero

Precision Tool Inspection Device, HIPPSC Tool Automation Ecosystem Member, Off-Machine Tool Presetting & Inspection Unit for Workshop

Automatic Measurement & Presetting of Tool Length, Diameter, Concentricity, Edge Runout, R-Angle

High-Precision Off-Machine Laser Tool Presetter

CNC Machining, Mold Manufacturing, Precision Machinery, Aerospace, Automotive Parts Machining, etc.

• Min Measurable Tool Diameter: TrueZero E25 0.15mm, TrueZero E32 0.15mm, TrueZero E40 0.15mm, TrueZero E50 0.15mm, TrueZero E63 0.15mm, TrueZero E100 0.15mm, TrueZero T30 0.15mm, TrueZero T40 0.15mm, TrueZero T50 0.15mm
• Max Measurable Tool Diameter: TrueZero E25 32mm, TrueZero E32 32mm, TrueZero E40 32mm, TrueZero E50 32mm, TrueZero E63 80mm, TrueZero E100 80mm, TrueZero T30 32mm, TrueZero T40 80mm, TrueZero T50 80mm
• Max Measurable Tool Height: TrueZero E25 400mm, TrueZero E32 400mm, TrueZero E40 400mm, TrueZero E50 400mm, TrueZero E63 400mm, TrueZero E100 500mm, TrueZero T30 400mm, TrueZero T40 400mm, TrueZero T50 500mm

• Spindle Nose Accuracy: HSK25E under 1um, HSK32A/HSK32C/HSK32E/HSK40F under 1um, HSK40A/HSK40C/HSK40E/HSK50F under 1um, HSK50A/HSK50C/HSK50E/HSK63F under 1um, HSK63A/HSK63C under 1um, HSK100A under 1.5um, BT30/BBT30 under 1um, BT40/BBT40 under 1um, BT50/BBT50 under 1.5um
• Spindle Remote End Accuracy: HSK25E under 5um, HSK32A/HSK32C/HSK32E/HSK40F under 5um, HSK40A/HSK40C/HSK40E/HSK50F under 5um, HSK50A/HSK50C/HSK50E/HSK63F under 5um, HSK63A/HSK63C under 5um, HSK100A under 5um, BT30/BBT30 under 5um, BT40/BBT40 under 7um, BT50/BBT50 under 7um
• Repeat Measurement Accuracy (Diameter): HSK25E 2um, HSK32A/HSK32C/HSK32E/HSK40F 2um, HSK40A/HSK40C/HSK40E/HSK50F 2um, HSK50A/HSK50C/HSK50E/HSK63F 2um, HSK63A/HSK63C 4um, HSK100A 4um, BT30/BBT30 2um, BT40/BBT40 4um, BT50/BBT50 4um

0.1μm

±2μm

≦1.5μm

≦1.5μm

±5μm (For arcs above R1; measurement accuracy degrades for arcs below R1, detection may fail)

0-1000 rpm/min

600rpm (default, adjustable)

10rpm

5000mm/min

3000mm/min

2mm/min

3 Axes (X-Axis / Z-Axis / C-Axis Rotation)

≤30s/pc (Standard One-Touch Measurement Process)

600×1050×1900mm

350KG (370KG for E100, T50)

Adaptable to Standard Industrial Workbench, with Adjustable Leveling Feet

±150mm

400mm (500mm for E100, T50)

12.3-inch Industrial Touch Screen, Supports Chinese/English Switching

Vertical Integrated Body, Laser Probe + Precision Spindle + Electrical Control System Integrated

AC220V / 50Hz

2KW

10A

GB Standard 3-Pin 10A Plug

DC24V

0.6-0.8 MPa (for Spindle Tool Release/Clamping)

50L/min

Φ10mm Quick-Connect Fitting

IP54

0℃ ~ 45℃

-10℃ ~ 60℃

20%~90% RH (Non-Condensing)

0.5G (10-60Hz)

1G (11ms)

≤65dB(A)

Adaptable to Typical Dusty Machining Workshop Environment, Laser Probe Requires Regular Cleaning

Adaptable to Typical Oil-Contaminated Machining Workshop Environment, Anti-Oil Coating on Equipment Surface

Automatic Tool Length Measurement (1μm Accuracy)

Automatic Cutting Edge Diameter Measurement (Min. 0.2mm)

Automatic Edge Runout Measurement (Multi-Edge Tools)

Automatic R-Angle Measurement & Calculation

Automatic Concentricity Measurement (Tool Shank)

Automatic Tool Holder Scan Recognition & Information Traceability (Optional)

Automatic Tool Life Statistics & Warning Management

One-Touch Fully Automatic Measurement (Length + Diameter + Runout + Concentricity + R-Angle)

Touch Screen One-Touch Operation / Electronic Handwheel Manual Debug (X/Z/C 3 Axes)

Stores ≥10,000 Tool Measurement Records, ≥100 Tool Parameter Templates

Ethernet / RS232 / RS485 / USB (Supports MES/ERP Upload)

Measurement Result Printing, Network Upload, Label Printing, Scan Traceability

Emergency Stop Button (Dual Channel: Body + Control Panel)

Laser Probe Anti-Collision Protection, Auto Stop on Over-Travel

X/Z Axis Soft Limit + Hard Limit Dual Protection

Automatic Alarm & Shutdown on Spindle Abnormality

Full Electrical Protection: Overcurrent, Overvoltage, Overload, Overtemperature

Air Supply Pressure-Loss Protection, Air-Off Self-Lock (Spindle Tool Release Protection)

Auto Pause & Alarm Prompt on Program Runtime Error

Error-Proof Function: Auto Recognition & Alarm on Tool Holder Model Mismatch

Laser Safety Class 2, Compliant with Eye Safety Standards

Fully Compatible with FANUC, Siemens, Mitsubishi, Heidenhain, Huazhong CNC, GSK and Other Mainstream CNC Systems

Fully Compatible with Mazak, DMG MORI, Makino, HAAS, Shenyang Machine Tool, Dalian Machine Tool and Other Mainstream Brand Machining Centers

Fully Compatible with BT, HSK, SK, CAT and Other Mainstream Tool Holder Systems (via Spindle Adapter Replacement)

Supports MES Integration, ERP Data Upload, Local Database Export

Standardized Interface, Seamless Integration with MES/ERP Systems, Automated Production Lines, Tool Management Systems

Supports Windows/Linux, Can Integrate with Customer's Proprietary Production Management System

Complete SDK & API Provided, Supports Customer Customized Secondary Development

12 months (from the date of equipment acceptance)

Free on-site repair, free replacement of non-human-damaged parts, free technical support during warranty period

Response within 4 hours domestically, on-site within 24 hours (48 hours for remote areas)

7×24 Remote Technical Support, Lifetime Free Technical Consultation

Free on-site installation, debugging & training until normal production

Free operation, programming & maintenance training, customizable training content

Nationwide spare parts warehouses, common spare parts delivered within 48 hours, core spare parts within 72 hours

Lifetime Equipment Software Upgrade & Function Expansion Services

Equipment trade-in & residual value recovery service available

1.Clean oil/dust from equipment surface; 2. Check air supply pressure; 3.Check emergency stop button; 4. Check laser probe window cleanliness

1.Clean laser probe optical window (use professional lens cloth); 2.Check air hoses & cables for damage/looseness; 3.Check spindle taper for wear, clean & apply anti-rust oil; 4.Back up equipment measurement data

1.Lubricate X/Z axis guide rails & ball screws; 2.Check electrical system terminals for looseness; 3.Calibrate measurement accuracy (using standard calibration tool holder); 4.Clean dust inside electrical control cabinet

1.Comprehensive check of equipment body sealing; 2.Check servo motor & spindle operating status; 3.Comprehensive calibration of all measurement accuracies; 4.Check safety protection system functionality

1.Full disassembly & maintenance of X/Z axis guide rails, ball screws & bearings; 2.Replace aged air hoses, cables & seals; 3.Comprehensive electrical system performance test; 4.Full machine accuracy calibration & performance test

1.Laser Probe Lens: 3-6 months (depending on usage frequency); 2.Spindle Adapter: 12-24 months (depending on usage frequency); 3.Air Hose Fittings: 12 months; 4.Seals: 12-24 months

Special Guide Rail Grease, Laser Lens Cleaning Solution, Lens Cloth, Sealant, Compressed Air Filter Element, Spindle Anti-Rust Oil, etc.

Original factory on-site maintenance service available, customizable maintenance packages

1.Laser tool presetter main unit x1; 2.Industrial touch screen control panel x1; 3.Standard spindle adapter x1 set (BT40);4.Standard calibration tool holder x1; 5.Air source FRL unit x1 set; 6.Power cable & communication cable x1 set; 7.Product manual, operation manual & maintenance manual x1 set; 8.Electronic handwheel x1

1.Tool holder scan recognition system (QR/barcode); 2.Tool presetting system software module; 3.Multi-spec spindle adapters (BT30/HSK-A63/HSK-A100, etc.); 4.Dedicated edge measurement program;5.Dedicated concentricity measurement program; 6.Data acquisition & traceability system software

1.Equipment protective cover; 2.Audible & visual alarm device; 3.Laser safety glasses

1.Customized mounting base; 2.Special spindle adapter (non-standard tool holder); 3.Extension cables & air hoses; 4 Label printer

1.Extended warranty service; 2.Annual maintenance package; 3.Customized measurement program development; 4.Secondary development service; 5.On-site training service

Tool Length, Diameter, Concentricity, R-Angle Presetting & Inspection for CNC Machining Centers

Quick Changeover Measurement & Parameter Setting for Multi-Variety, Small-Batch Tools

Tool Presetting for Machining Workshops in Automotive Parts, Aerospace, Mold, 3C Electronics, Engineering Machinery Industries

Unmanned Machining Workshop, Lights-Out Factory Tool Presetting & Life Management

Tool Life Management, Machining Quality Traceability, Production Data Collection & Analysis

Vertical Machining Center, Horizontal Machining Center, Gantry Machining Center, CNC Lathe, Grinding Machine and Other CNC Equipment

Automotive Manufacturing, Aerospace, Mold Machining, 3C Electronics, Engineering Machinery, Medical Devices, General Machinery and All Machining-Related Industries

Non-Compliant

Non-Compliant

Class 2 (Compliant with IEC 60825-1)

Compliant with GB/T 15706 Machinery Safety Standard

Compliant with GB/T 16754 Emergency Stop Device Standard

Compliant with GB/T 5226.1 Machinery Electrical Safety Standard

Compliant with GB/T 18831 Interlocking Device Standard

Compliant with GB/T 5226.1 Grounding Protection Standard

Compliant with GB/T 20438 Functional Safety Standard

Compliant with GB 2894 Safety Signs Standard

Compliant with GB/T 37414 Industrial Environment Standard

Compliant with GB/T 5226.1 Electrical Equipment Inspection Standard

Compliant with GB/T 13306 Nameplate Standard

Compliant with GB/T 3768 Noise Measurement Standard

Compliant with GB/T 17799.2 EMC Standard
